Notebook 16: Richards Equation — Groundwater Flow

This notebook introduces the Richards equation for variably-saturated porous media flow. We solve a steady-state drainage problem in a vertical soil column and validate the numerical solution against an exact analytical benchmark.

Key Concepts

• Richards equation — nonlinear PDE for unsaturated flow

• Gardner exponential conductivity model

• Analytical steady-state solution with gravity

• Darcy velocity field

The Richards Equation

Water movement in unsaturated soil is governed by the Richards equation (Richards, 1931). Three equivalent forms exist:

Form	Storage term	Flux term	Notes
Head-based (\(\psi\))	\(C(\psi)\,\partial\psi/\partial t\)	\(\nabla\cdot[K(\psi)(\nabla\psi - \mathbf{s})]\)	Simple, but poor mass balance
Moisture-based (\(\theta\))	\(\partial\theta/\partial t\)	\(\nabla\cdot[D(\theta)\nabla\theta]\)	Conservative, but \(D(\theta)\) singular at saturation
Mixed	\(\partial\theta/\partial t\)	\(\nabla\cdot[K(\psi)(\nabla\psi - \mathbf{s})]\)	Conservative and well-behaved

The mixed form (Celia et al., 1990) is generally preferred because writing the storage as \(\partial\theta/\partial t\) guarantees mass conservation in the discrete system — the head-based form \(C(\psi)\,\partial\psi/\partial t\) introduces balance errors because the discrete chain rule \(C(\psi)\Delta\psi \neq \Delta\theta\) when \(C\) varies sharply across a timestep.

\[\frac{\partial \theta}{\partial t} - \nabla\cdot\bigl[K(\psi)\,(\nabla\psi - \mathbf{s})\bigr] = f\]

where

• \(\psi\) is the pressure head (negative in unsaturated soil),

• \(\theta(\psi)\) is the volumetric water content,

• \(K(\psi)\) is the hydraulic conductivity (decreases as soil dries out),

• \(\mathbf{s} = [0, -1]^T\) represents gravity (pointing downward),

• \(f\) is any source/sink.

The Underworld solver uses this mixed form when water_content is set — discretising the storage term as \((\theta(\psi^{n+1}) - \theta(\psi^n))/\Delta t\). The Jacobian \(\partial\theta/\partial\psi = C(\psi)\) is computed automatically by PETSc. For steady-state problems (where \(\partial/\partial t = 0\)) the forms are all identical.

Gardner Exponential Model

The Gardner (1958) model uses an exponential relationship for hydraulic conductivity:

\[K(\psi) = K_s\,e^{\alpha\psi}, \qquad \psi < 0\]

This is simpler than the Van Genuchten model and, crucially, admits an exact analytical solution for the steady-state Richards equation with gravity.

The substitution \(u = e^{\alpha\psi}\) linearises the ODE, giving the exact pressure head profile:

\[\psi(y) = \frac{1}{\alpha}\,\ln\!\Bigl[ \bigl(u_0 - q^*\bigr)\,e^{-\alpha y} + q^* \Bigr]\]

where \(u_0 = e^{\alpha\psi_0}\), \(u_L = e^{\alpha\psi_L}\), and \(q^* = q/K_s = (u_L - u_0\,e^{-\alpha L})/(1 - e^{-\alpha L})\).

import numpy as np
import sympy
import underworld3 as uw
import matplotlib.pyplot as plt

from underworld3.utilities.retention_curves import (
    gardner_K,
    gardner_theta,
    gardner_steady_state_psi,
)

Configurable parameters

Default values are defined as named constants below. From the command line, override them with PETSc-style flags:

python script.py -uw_Ks "5e-5 m/s" -uw_alpha "2.0 1/m"

# --- Default values (edit these in a notebook) ---
COLUMN_HEIGHT = 1.0     # m   — soil column height
COLUMN_WIDTH  = 0.1     # m   — narrow (≈ 1-D)
RES           = 32      #     — vertical elements
KS            = 1e-4    # m/s — saturated hydraulic conductivity
ALPHA_G       = 3.5     # 1/m — Gardner sorptive number
THETA_R       = 0.05    #     — residual water content
THETA_S       = 0.40    #     — saturated water content
PSI_TOP       = -0.5    # m   — pressure head at top
PSI_BOTTOM    = -3.0    # m   — pressure head at bottom

# Named expressions for display
Ks      = uw.expression(r"K_s",      uw.quantity(KS, "m/s"),   "saturated conductivity")
alpha_g = uw.expression(r"\alpha",   uw.quantity(ALPHA_G, "1/m"), "Gardner sorptive number")
theta_r = uw.expression(r"\theta_r", THETA_R,  "residual water content")
theta_s = uw.expression(r"\theta_s", THETA_S,  "saturated water content")

Ks

\[\mathrm{K_s} = 1.00 \times 10^{-04} \; \mathrm{meter / second}\]

Retention Curves

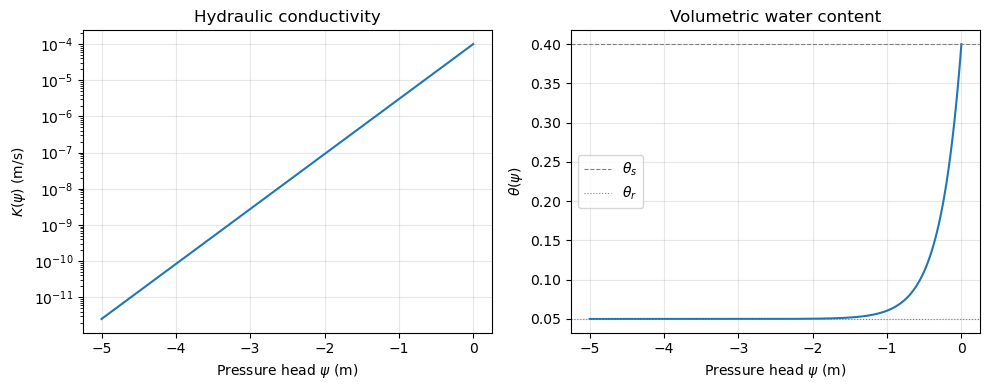

Let’s visualise how hydraulic conductivity and water content change with pressure head for these Gardner parameters.

psi_range = np.linspace(-5, 0, 200)

K_vals = KS * np.exp(ALPHA_G * psi_range)
K_vals[psi_range >= 0] = KS

theta_vals = THETA_R + (THETA_S - THETA_R) * np.exp(ALPHA_G * psi_range)
theta_vals[psi_range >= 0] = THETA_S

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10, 4))

ax1.semilogy(psi_range, K_vals)
ax1.set_xlabel(r"Pressure head $\psi$ (m)")
ax1.set_ylabel(r"$K(\psi)$ (m/s)")
ax1.set_title("Hydraulic conductivity")
ax1.grid(True, alpha=0.3)

ax2.plot(psi_range, theta_vals)
ax2.set_xlabel(r"Pressure head $\psi$ (m)")
ax2.set_ylabel(r"$\theta(\psi)$")
ax2.set_title("Volumetric water content")
ax2.axhline(THETA_S, color="grey", ls="--", lw=0.8, label=r"$\theta_s$")
ax2.axhline(THETA_R, color="grey", ls=":",  lw=0.8, label=r"$\theta_r$")
ax2.legend()
ax2.grid(True, alpha=0.3)

fig.tight_layout()
plt.show()

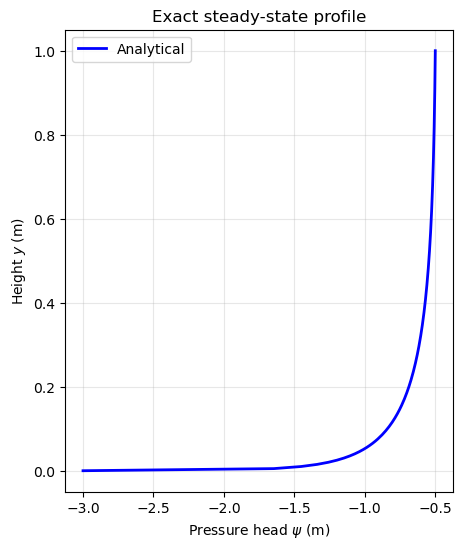

Analytical Solution

For a column of height \(L\) with boundary conditions \(\psi(0) = \psi_\text{bottom}\) and \(\psi(L) = \psi_\text{top}\), the exact steady-state profile is given by gardner_steady_state_psi.

y_exact = np.linspace(0, COLUMN_HEIGHT, 200)
psi_exact = gardner_steady_state_psi(
    y_exact,
    psi_0=PSI_BOTTOM,
    psi_L=PSI_TOP,
    L=COLUMN_HEIGHT,
    alpha=ALPHA_G,
)

fig, ax = plt.subplots(figsize=(5, 6))
ax.plot(psi_exact, y_exact, "b-", lw=2, label="Analytical")
ax.set_xlabel(r"Pressure head $\psi$ (m)")
ax.set_ylabel("Height $y$ (m)")
ax.set_title("Exact steady-state profile")
ax.grid(True, alpha=0.3)
ax.legend()
plt.show()

Numerical Solution with Richards Solver

We solve the same problem numerically using uw.systems.Richards, stepping forward in time until the transient terms die out and we reach steady state.

mesh = uw.meshing.StructuredQuadBox(
    elementRes=(4, RES),
    minCoords=(0.0, 0.0),
    maxCoords=(COLUMN_WIDTH, COLUMN_HEIGHT),
    qdegree=3,
)

psi_var = uw.discretisation.MeshVariable(r"\psi", mesh, 1, degree=2)
v_soln  = uw.discretisation.MeshVariable("v", mesh, mesh.dim, degree=1)

Structured box element resolution 4 32

richards = uw.systems.Richards(mesh, psi_var, v_soln, order=2, theta=0.5, degree=3)
richards.petsc_options.delValue("ksp_monitor")
richards.petsc_options["snes_rtol"] = 1.0e-6

psi_sym = psi_var.sym[0]

# Constitutive model: Gardner K(ψ) with gravity
richards.constitutive_model = uw.constitutive_models.DarcyFlowModel
richards.constitutive_model.Parameters.permeability = gardner_K(
    psi_sym, Ks=KS, alpha=ALPHA_G
)
richards.constitutive_model.Parameters.s = sympy.Matrix([0, -1]).T

# Mixed form: θ(ψ) for mass-conservative storage term
richards.water_content = gardner_theta(
    psi_sym,
    theta_r=THETA_R,
    theta_s=THETA_S,
    alpha=ALPHA_G,
)

richards.f = 0.0

# Boundary conditions
richards.add_dirichlet_bc([PSI_TOP], "Top")
richards.add_dirichlet_bc([PSI_BOTTOM], "Bottom")

# Velocity projector settings
richards._v_projector.petsc_options["snes_rtol"] = 1.0e-6
richards._v_projector.smoothing = 1.0e-3

# Inspect the solver expressions
richards.constitutive_model.Parameters.permeability

\[\kappa = Piecewise((0.0001, {\psi}(N.x, N.y) >= 0), (0.0001*exp(3.5*{\psi}(N.x, N.y)), True))\]

# Initial guess: linear profile from bottom to top
y = mesh.X[1]
psi_init = PSI_BOTTOM + (PSI_TOP - PSI_BOTTOM) * y / COLUMN_HEIGHT
psi_var.array = uw.function.evaluate(psi_init, psi_var.coords)

# Step towards steady state
dt = 0.1 * COLUMN_HEIGHT / KS   # a few diffusive time scales

for step in range(25):
    richards.solve(timestep=dt)

print(f"Converged after 25 steps (dt = {dt:.1f} s)")

Converged after 25 steps (dt = 1000.0 s)

Comparison

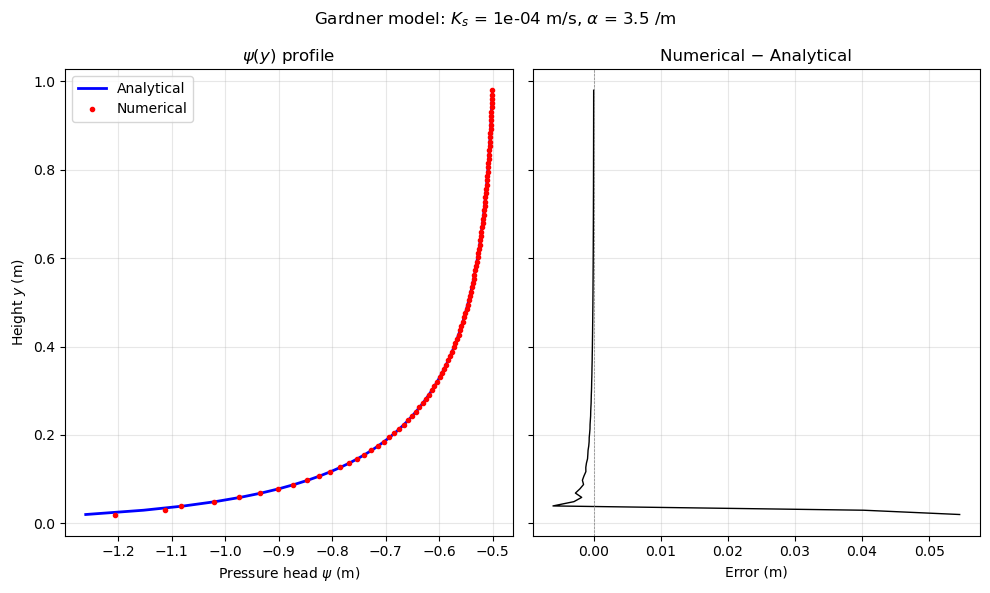

Sample the numerical solution along a vertical profile and compare with the exact analytical solution.

n_sample = 100
sample_y = np.linspace(0.02, COLUMN_HEIGHT - 0.02, n_sample)
sample_x = np.full_like(sample_y, COLUMN_WIDTH / 2)
sample_pts = np.column_stack([sample_x, sample_y])

psi_numerical = uw.function.evaluate(psi_var.sym[0], sample_pts).squeeze()
psi_analytical = gardner_steady_state_psi(
    sample_y, PSI_BOTTOM, PSI_TOP, COLUMN_HEIGHT, ALPHA_G
)

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10, 6), sharey=True)

# Pressure head profile
ax1.plot(psi_analytical, sample_y, "b-", lw=2, label="Analytical")
ax1.plot(psi_numerical, sample_y, "ro", ms=3, label="Numerical")
ax1.set_xlabel(r"Pressure head $\psi$ (m)")
ax1.set_ylabel("Height $y$ (m)")
ax1.set_title(r"$\psi(y)$ profile")
ax1.legend()
ax1.grid(True, alpha=0.3)

# Error
error = psi_numerical - psi_analytical
ax2.plot(error, sample_y, "k-", lw=1)
ax2.axvline(0, color="grey", ls="--", lw=0.5)
ax2.set_xlabel("Error (m)")
ax2.set_title("Numerical − Analytical")
ax2.grid(True, alpha=0.3)

fig.suptitle(
    f"Gardner model: $K_s$ = {KS:.0e} m/s, "
    rf"$\alpha$ = {ALPHA_G} /m",
    fontsize=12,
)
fig.tight_layout()
plt.show()

print(f"Max absolute error: {np.max(np.abs(error)):.4e} m")

Max absolute error: 5.4541e-02 m

Darcy Velocity

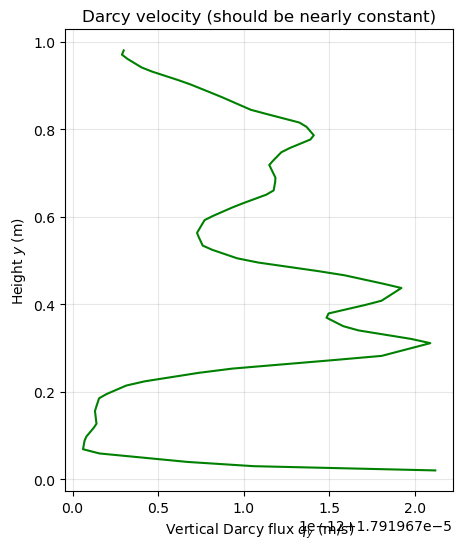

The Richards solver also computes the Darcy flux \(\mathbf{q} = -K(\psi)(\nabla\psi - \mathbf{s})\). At steady state the vertical component should be constant (uniform flux through the column).

vy_numerical = uw.function.evaluate(v_soln.sym[0, 1], sample_pts).squeeze()

fig, ax = plt.subplots(figsize=(5, 6))
ax.plot(vy_numerical, sample_y, "g-", lw=1.5)
ax.set_xlabel(r"Vertical Darcy flux $q_y$ (m/s)")
ax.set_ylabel("Height $y$ (m)")
ax.set_title("Darcy velocity (should be nearly constant)")
ax.grid(True, alpha=0.3)
plt.show()

Try It Yourself

Experiment with different parameters to build intuition:

# Larger α → sharper transition near saturation
ALPHA_G = 5.0

# Wetter bottom boundary
PSI_BOTTOM = -1.0

# Higher resolution
RES = 64

• What happens as \(\alpha \to 0\)? (Hint: the profile should approach linear.)

• What if the top boundary is fully saturated (\(\psi_\text{top} = 0\))?

• The Van Genuchten model is also available — try replacing gardner_K with van_genuchten_K (no analytical solution, but the solver still works).

• Can you compute mass conservation by integrating \(\theta(\psi)\) over the column?
